Building Envelope
In construction, the building envelope refers to the physical boundary that separates the interior conditioned spaces of a building from the exterior environment. It is a critical component of any structure as it provides protection against external elements such as weather, moisture, air infiltration, and temperature fluctuations. The building envelope typically consists of several layers and components, each serving a specific function to ensure the comfort, safety, and durability of the building. Here's a breakdown of the key elements of a building envelope:
- Structural Frame: The structural frame forms the skeleton of the building and provides support for the entire structure. It is typically made of materials such as steel, concrete, or wood and is designed to withstand the loads imposed by the building's weight and external forces such as wind and seismic activity.
- Exterior Walls: Exterior walls enclose the building and provide a barrier between the interior and exterior environments. These walls can be constructed using various materials such as brick, concrete blocks, wood framing, or steel framing. They are designed to resist moisture infiltration, provide insulation, and support the cladding materials.
- Cladding: Cladding is the outermost layer of the building envelope and serves both aesthetic and functional purposes. It protects the underlying structure from weather elements such as rain, snow, wind, and sunlight while also enhancing the building's appearance. Common cladding materials include brick, stone, stucco, metal panels, glass, and composite materials.
- Insulation: Insulation is placed within the exterior walls, roof, and floors to reduce heat transfer between the interior and exterior of the building. It helps maintain a comfortable indoor temperature, improves energy efficiency, and reduces heating and cooling costs. Common insulation materials include fiberglass, foam board, cellulose, and spray foam.
- Air and Vapor Barriers: Air and vapor barriers are installed within the building envelope to prevent air leakage and moisture infiltration. Air barriers are designed to seal gaps and cracks in the building envelope to minimize the flow of air through the walls, while vapor barriers prevent moisture vapor from penetrating into the building's interior spaces. These barriers help maintain indoor air quality, prevent mold and mildew growth, and protect the building materials from moisture damage.
- Roofing System: The roofing system forms the uppermost layer of the building envelope and provides protection against weather elements such as rain, snow, hail, and UV radiation. It is typically composed of roofing materials such as shingles, tiles, metal panels, or membrane systems. The roofing system also includes components such as underlayment, flashing, and drainage systems to ensure proper water shedding and drainage away from the building.
- Windows and Doors: Windows and doors are openings in the building envelope that allow natural light, ventilation, and access to the building's interior spaces. These openings must be properly sealed and insulated to minimize air and water infiltration. Energy-efficient windows and doors with low-e coatings, insulated glazing, and weather-stripping help improve thermal performance and reduce energy consumption.

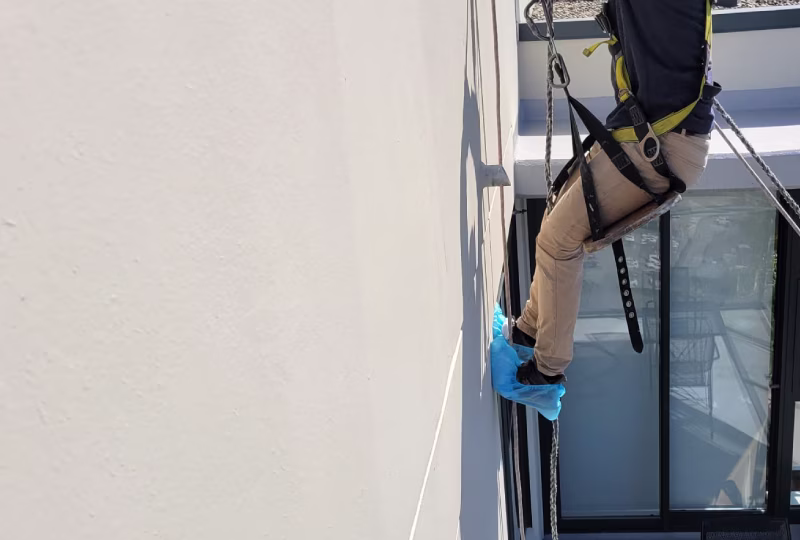

- Sealants and Caulks: Sealants and caulks are used to seal joints, seams, and penetrations in the building envelope to prevent air and water infiltration. They are applied to areas such as window and door frames, expansion joints, and transitions between different building materials. Proper installation and maintenance of sealants and caulks are essential for maintaining the integrity of the building envelope over time.
Overall, the building envelope plays a crucial role in ensuring the durability, energy efficiency, and comfort of a building. By carefully designing and constructing each of its components, architects and builders can create a high-performance building envelope that protects the interior spaces and enhances the overall quality of the built environment.
