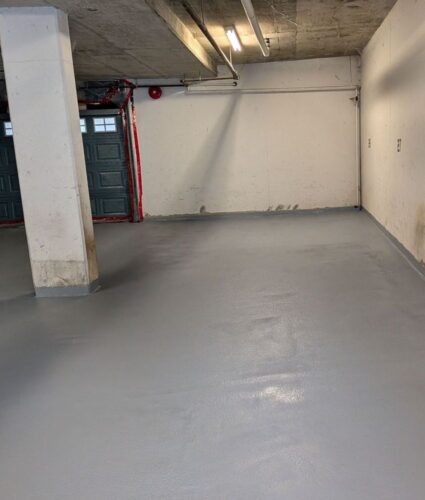

Parking Garage Traffic Coating in Vancouver

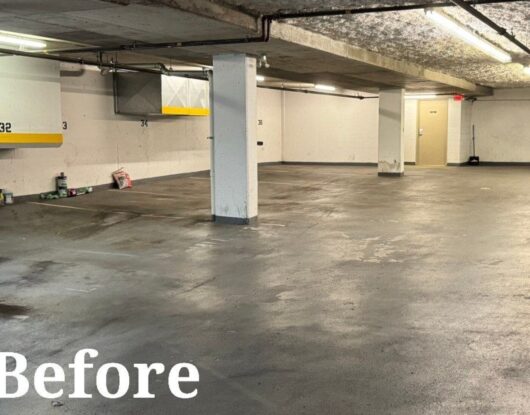

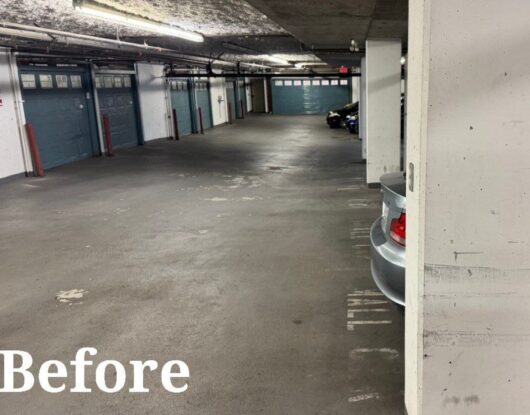

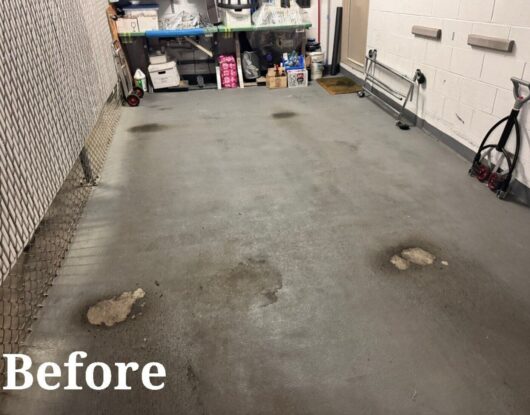

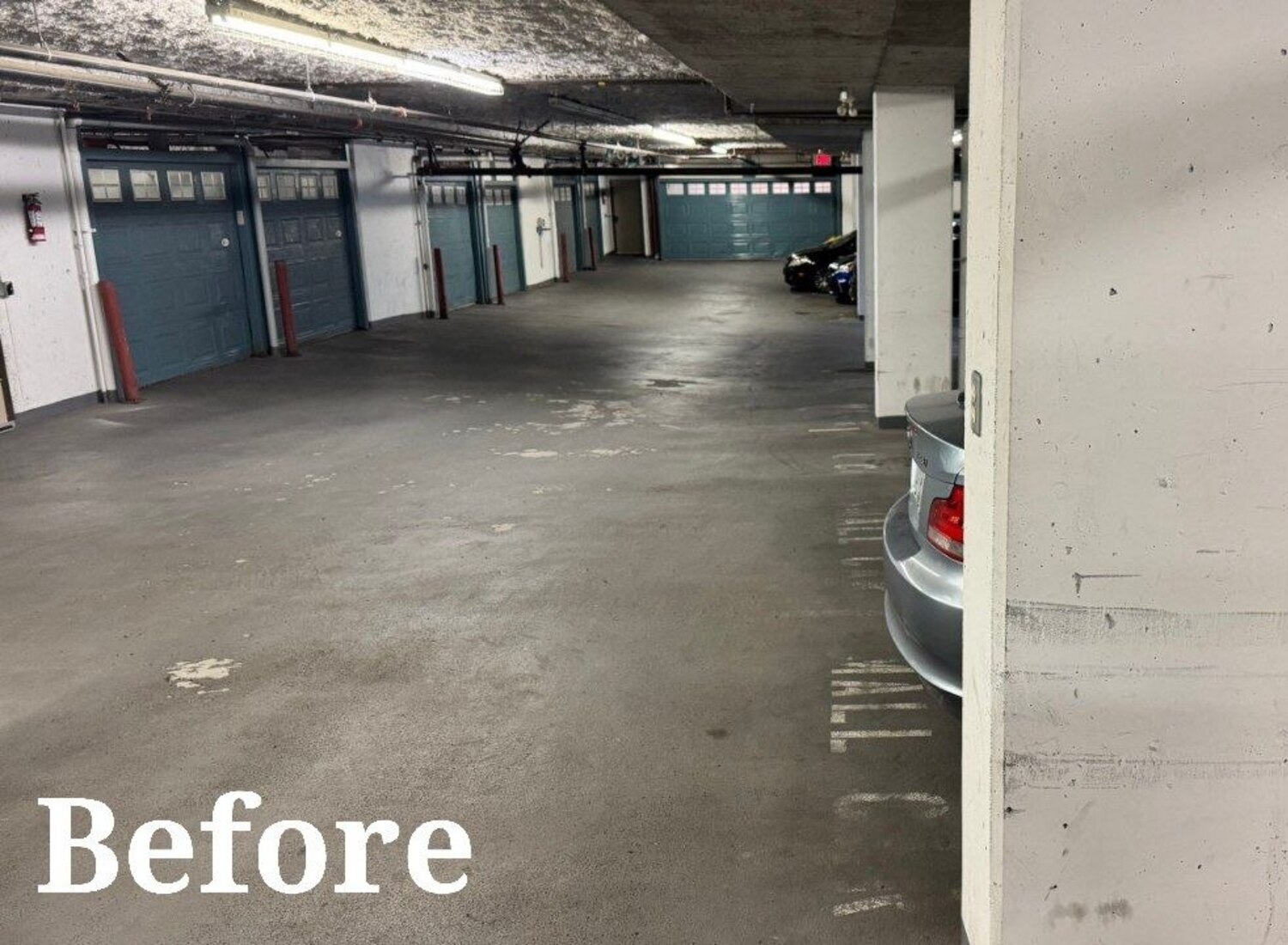

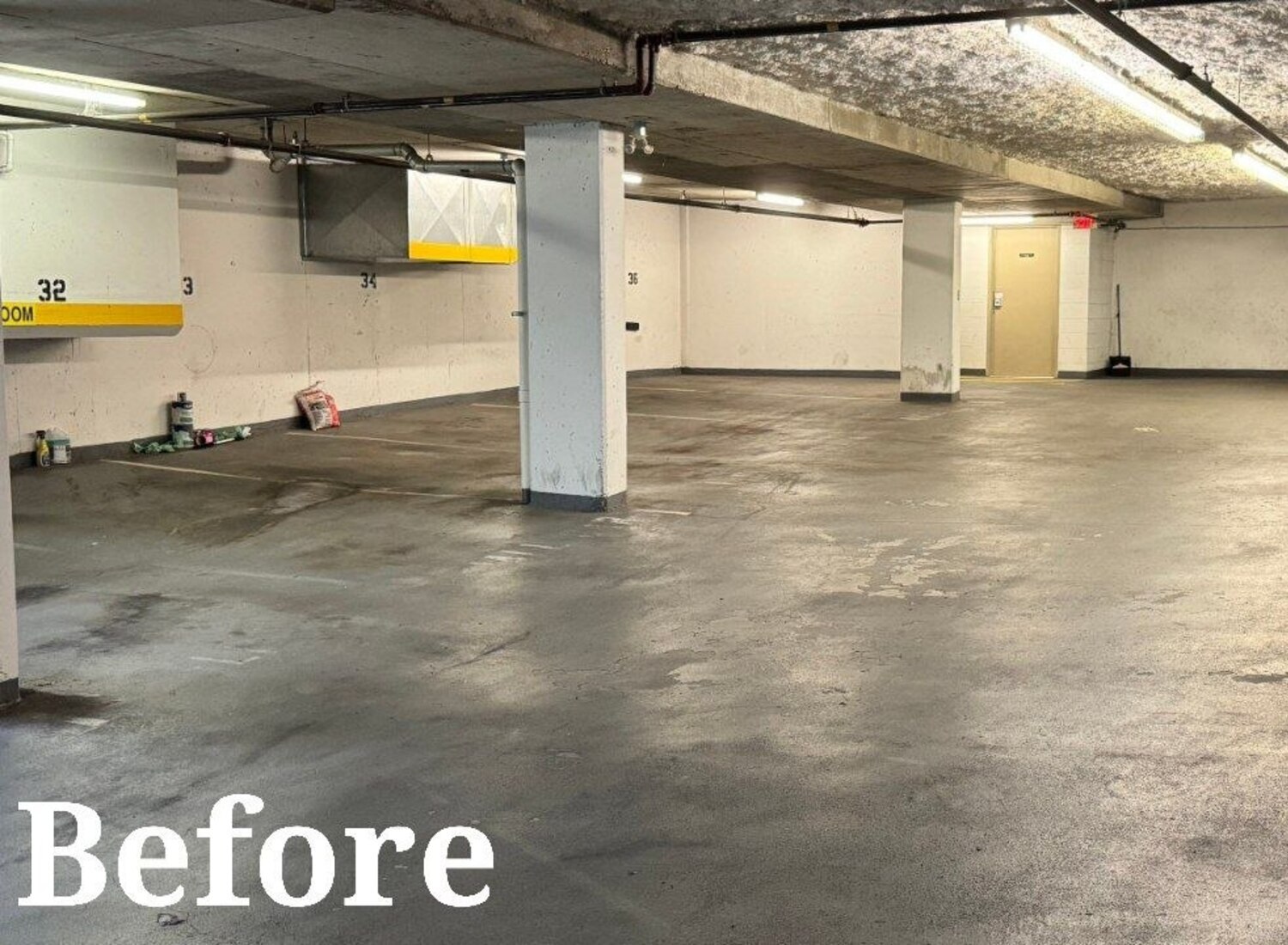

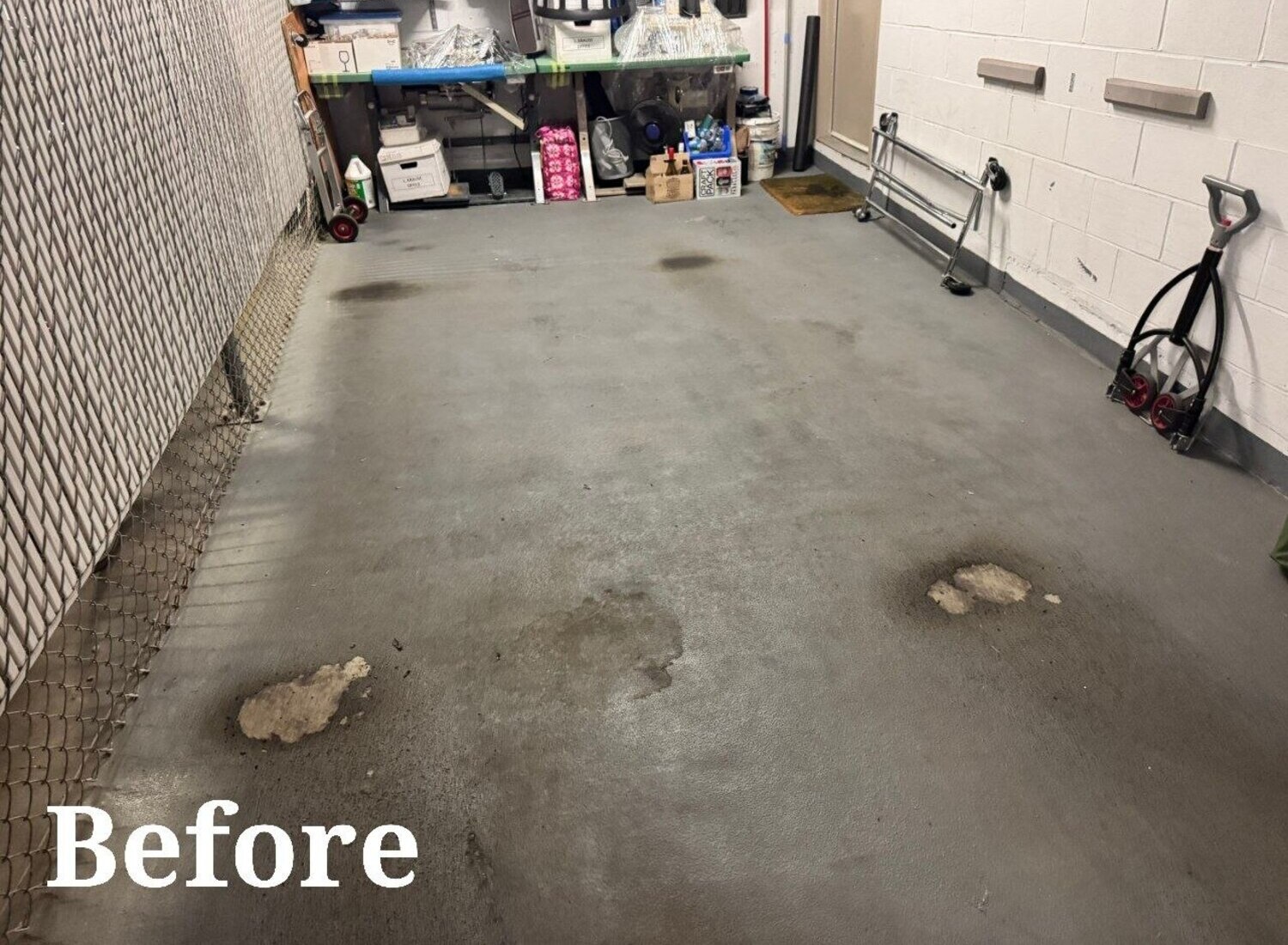

This project involved a complete traffic coating parking garage system upgrade at Strata Plan BCS 1266 Zoey complex, located at 3423 E Hastings Street, Vancouver, BC. Over time, regular wear and tear had compromised the existing membrane, leading to reduced protection and increased risk of water damage. The goal was to restore the surface, improve durability, and extend the lifespan of the structure.
Parking Garage Traffic Coating Project
Underground Parkade Floor Membrane Rehabilitation Project
The scope focused on full membrane rehabilitation, including removal of the existing system and installation of a new high-performance coating. The upgraded system ensures improved protection against moisture, traffic wear, and long-term deterioration.
Extending the Lifespan of an Underground Parkade Floor with Traffic Coatings
Proper traffic coating waterproofing is essential for maintaining underground parking structures. A durable parking garage floor coating protects the concrete substrate from water ingress, chemical exposure, and daily vehicle traffic.
By applying modern coating systems, GC West Construction helped extend the service life of the parkade while improving safety and performance.
Scope of Work
GC West Construction performed a full rehabilitation of the parkade surface, following a structured process to ensure long-term performance:

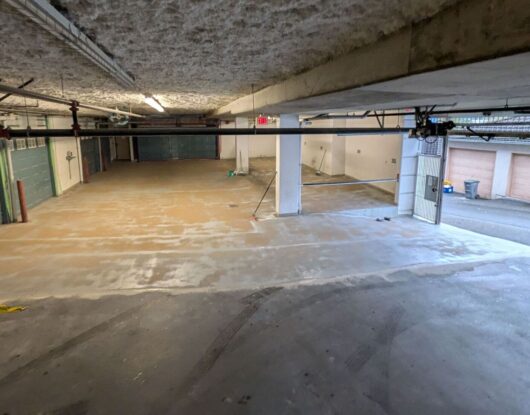

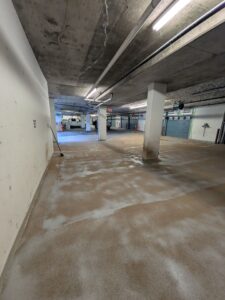

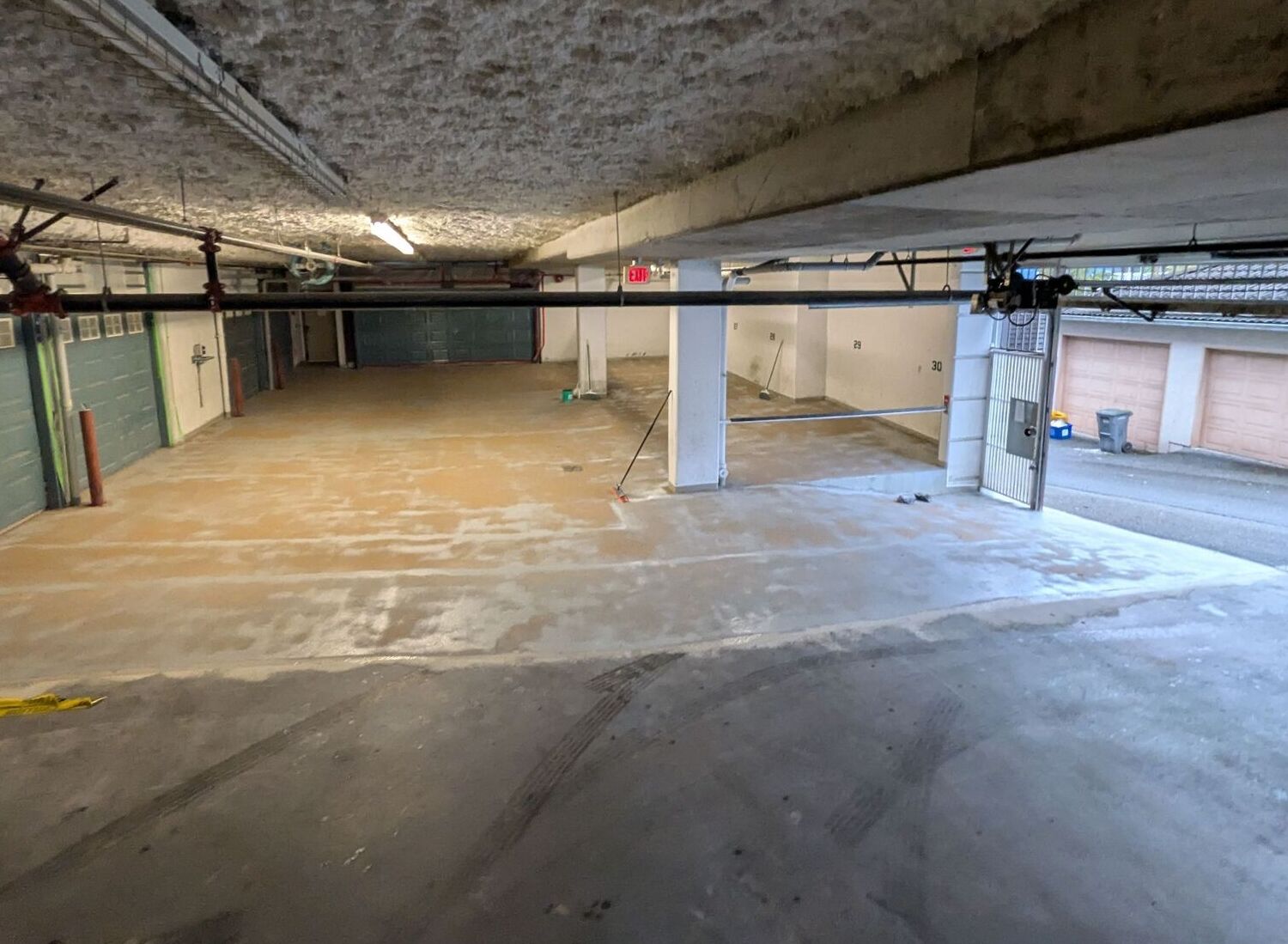

- Removal of the existing membrane using industrial grinding equipment
- Surface preparation through shot blasting to ensure proper adhesion

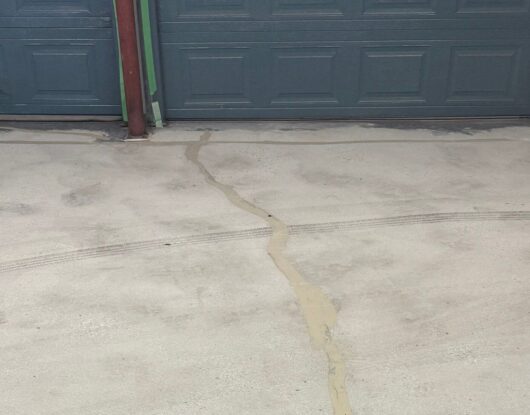

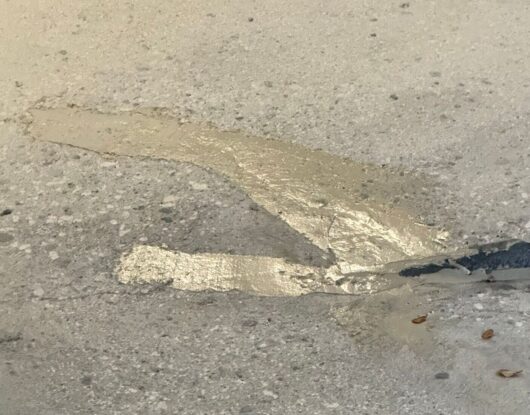

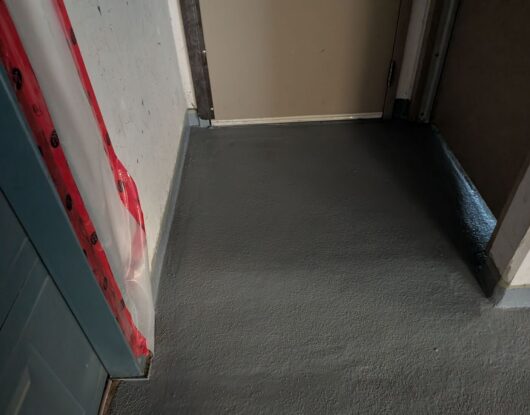

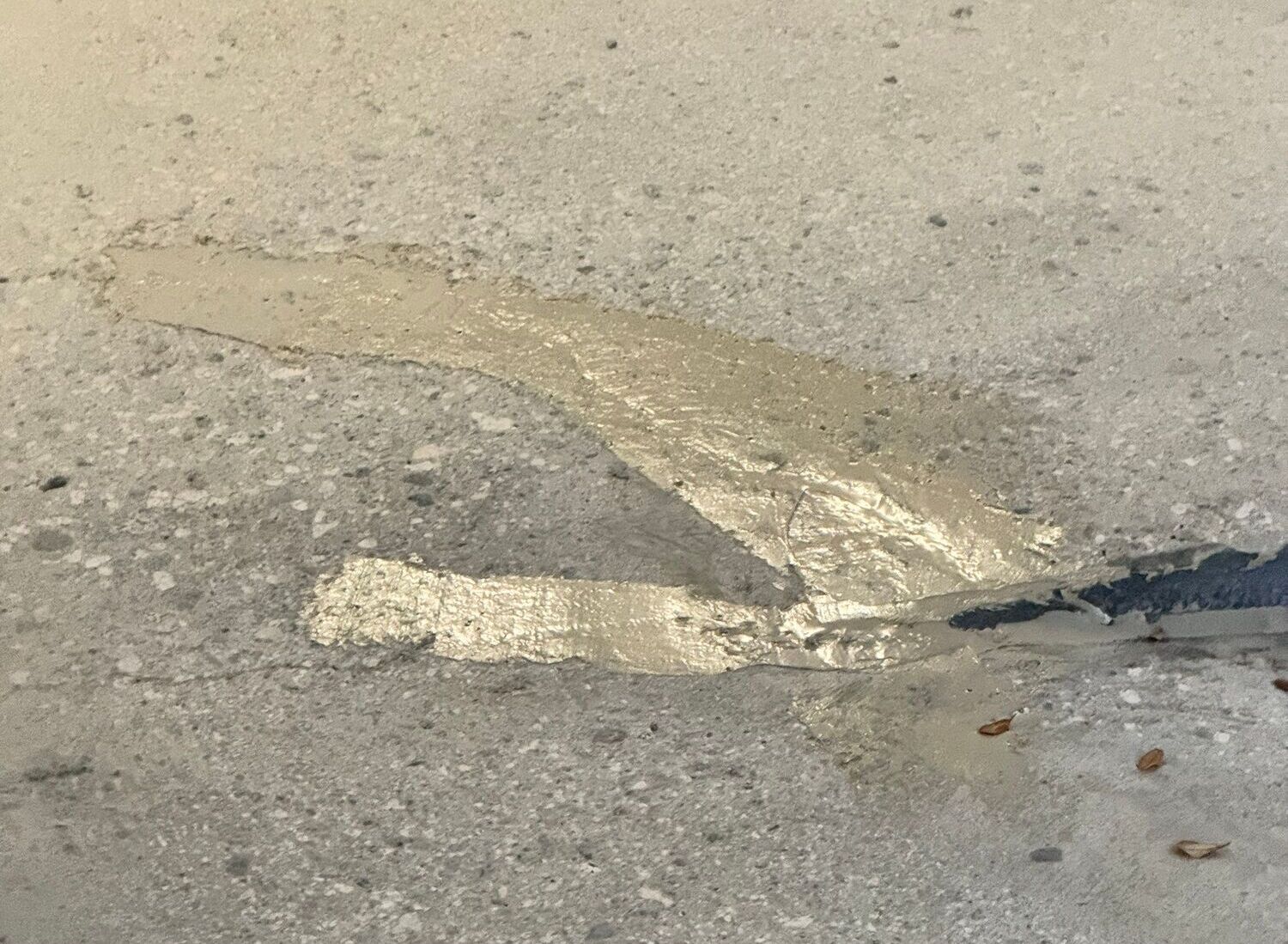

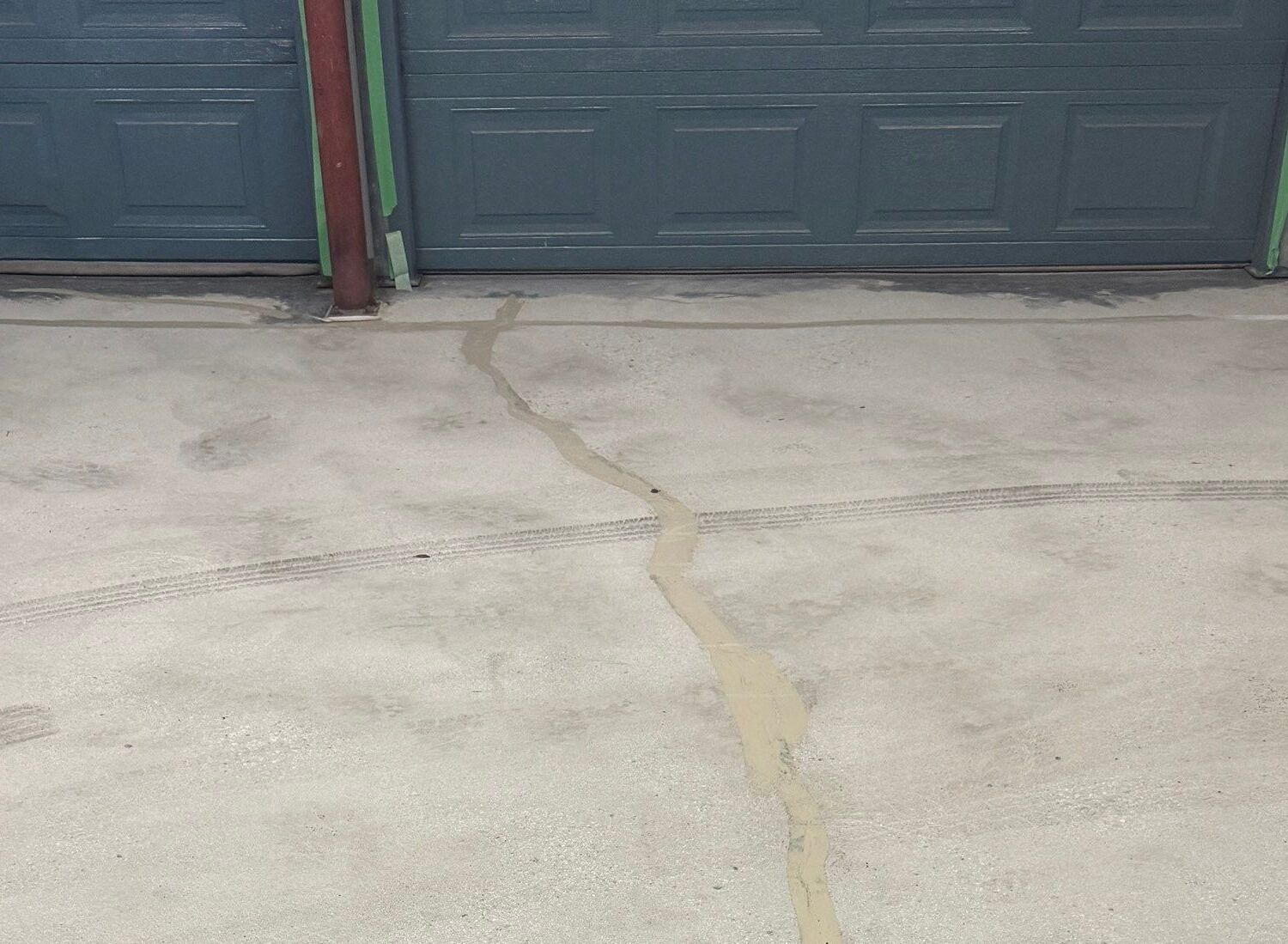

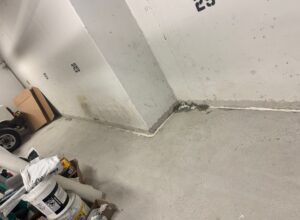

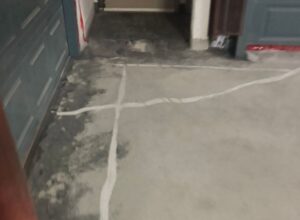

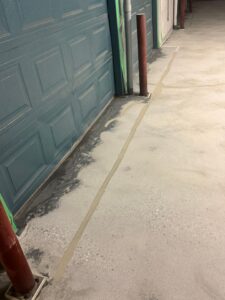

- Crack routing and sealing across the concrete floor and floor-to-wall interfaces
- Tremco consultant inspection prior to membrane application to verify site conditions

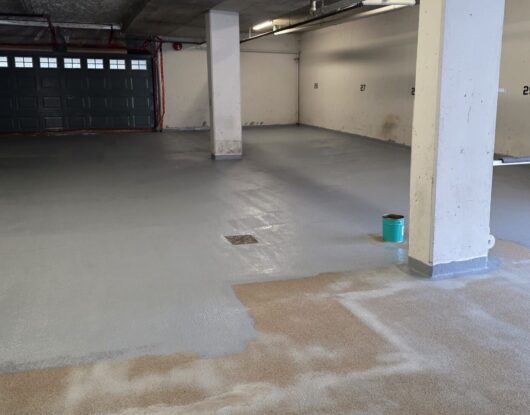

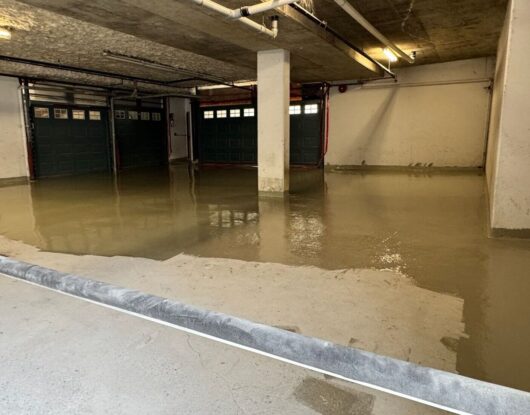

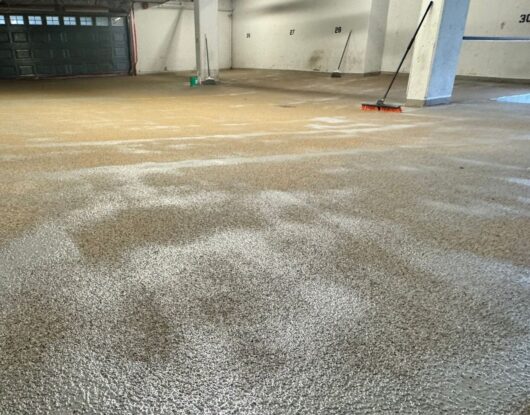

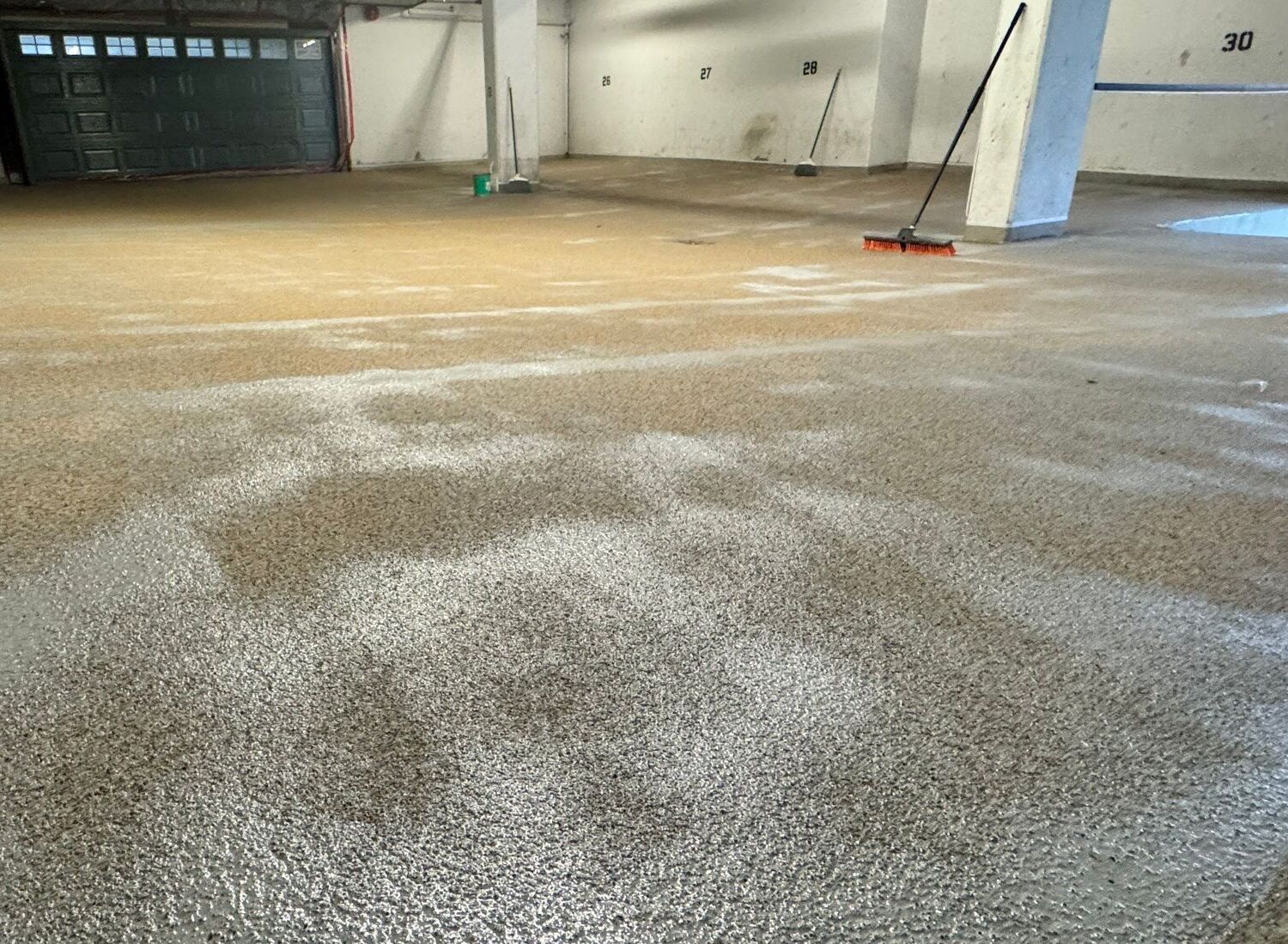

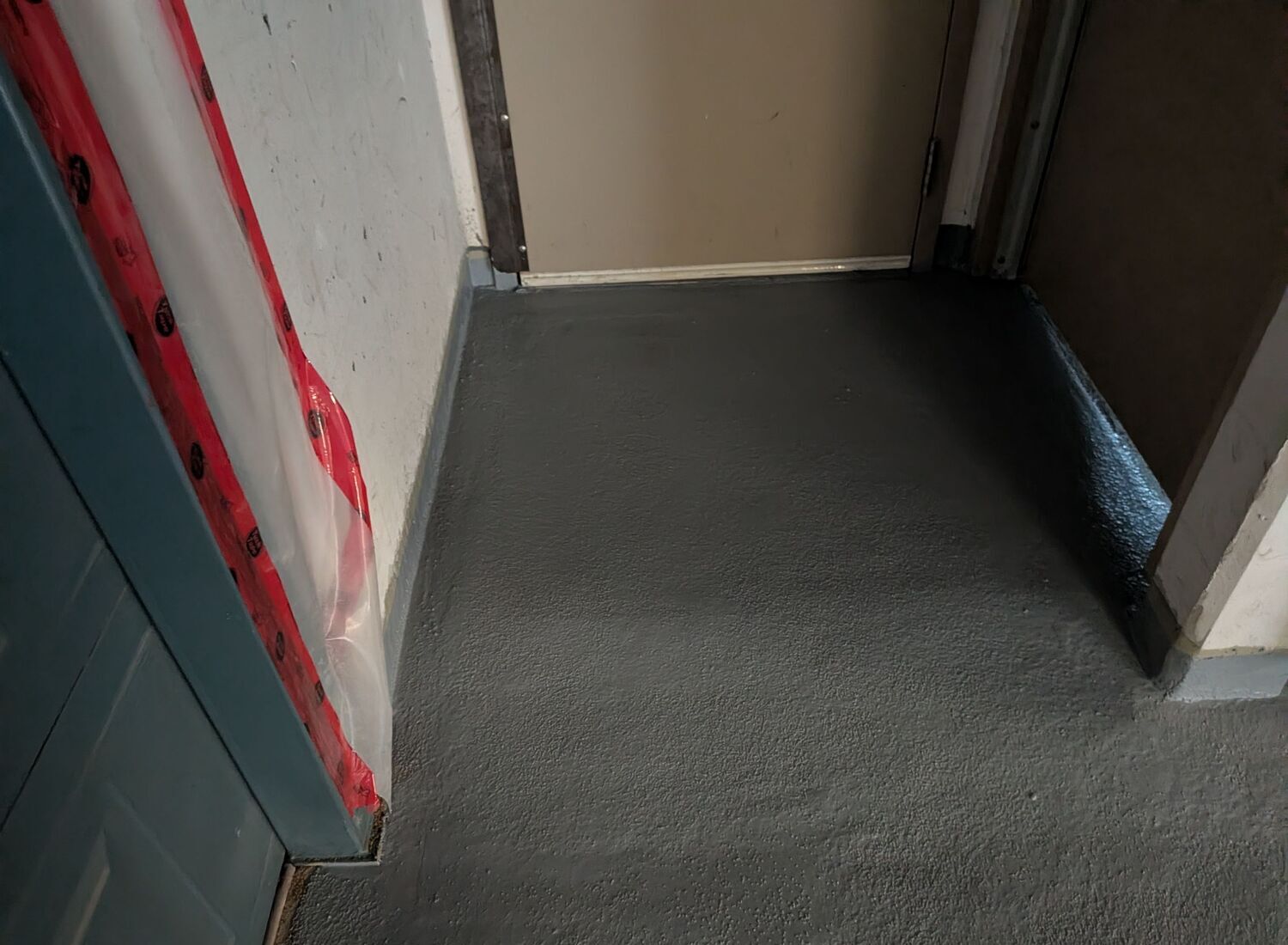

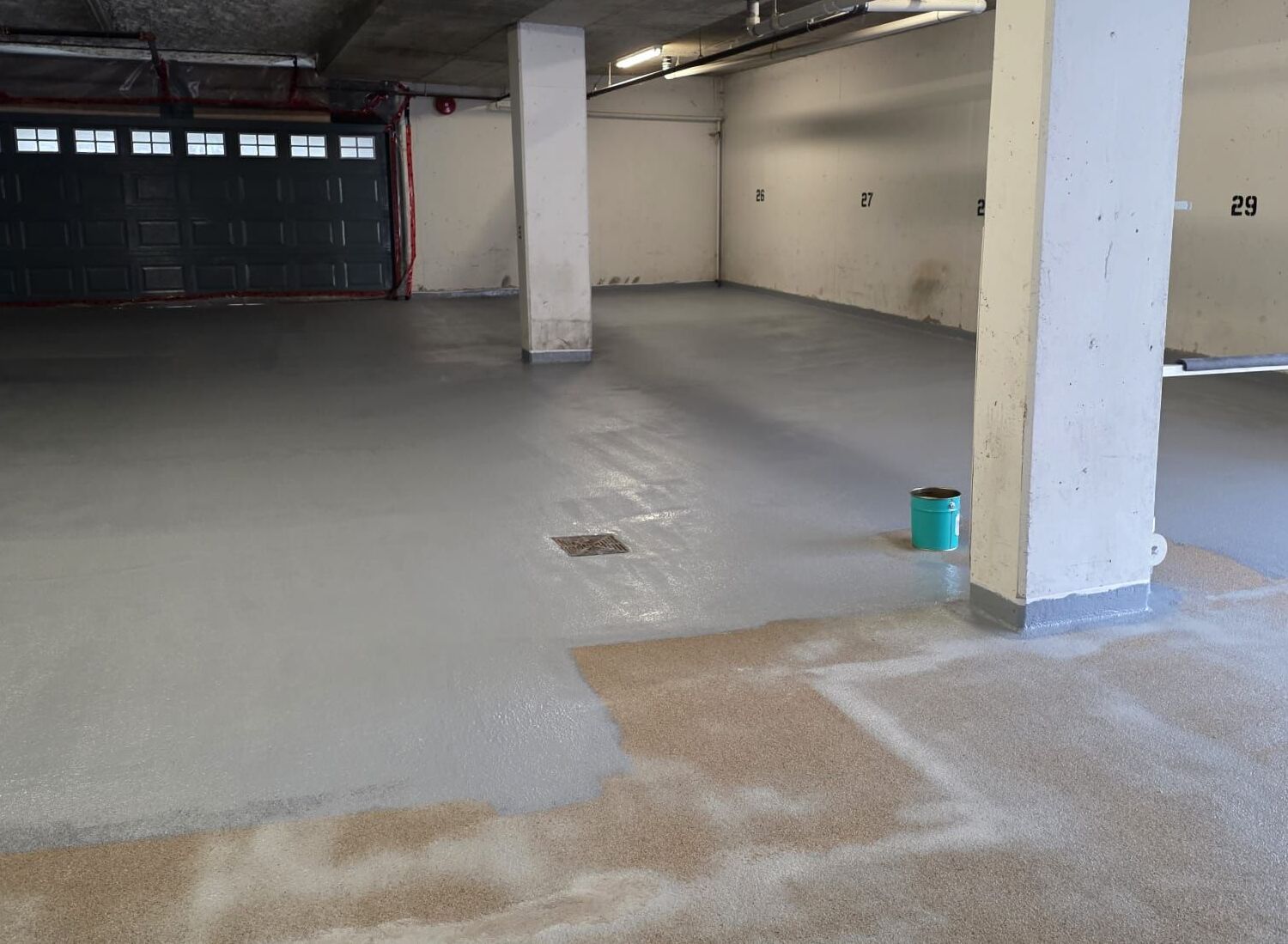

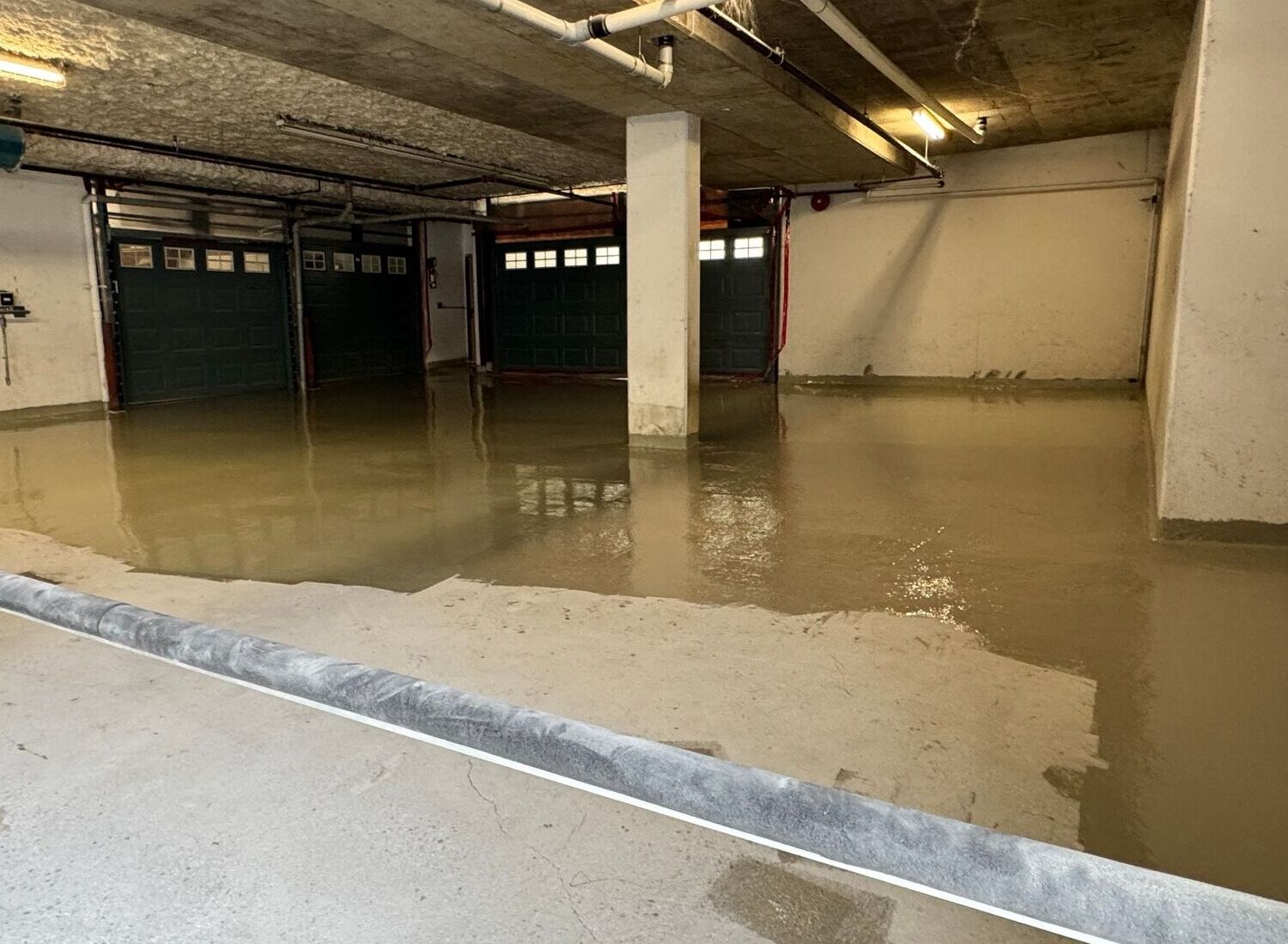

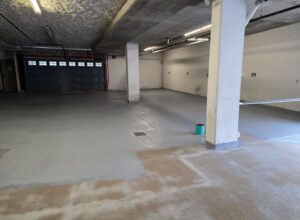

- Installation of a PUMA heavy-duty system using liquid waterproofing membrane application methods

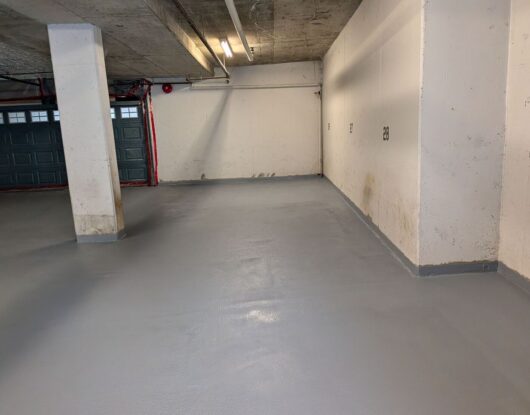

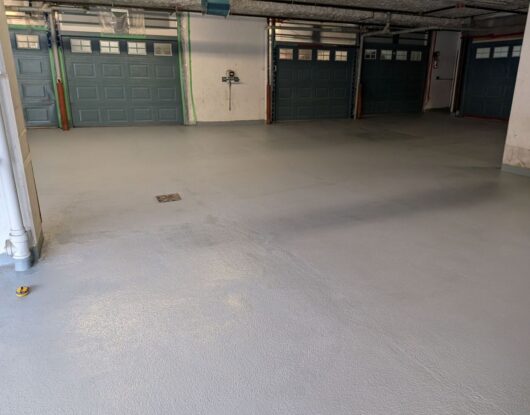

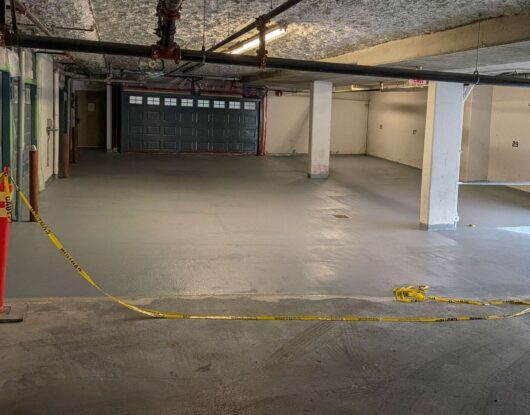

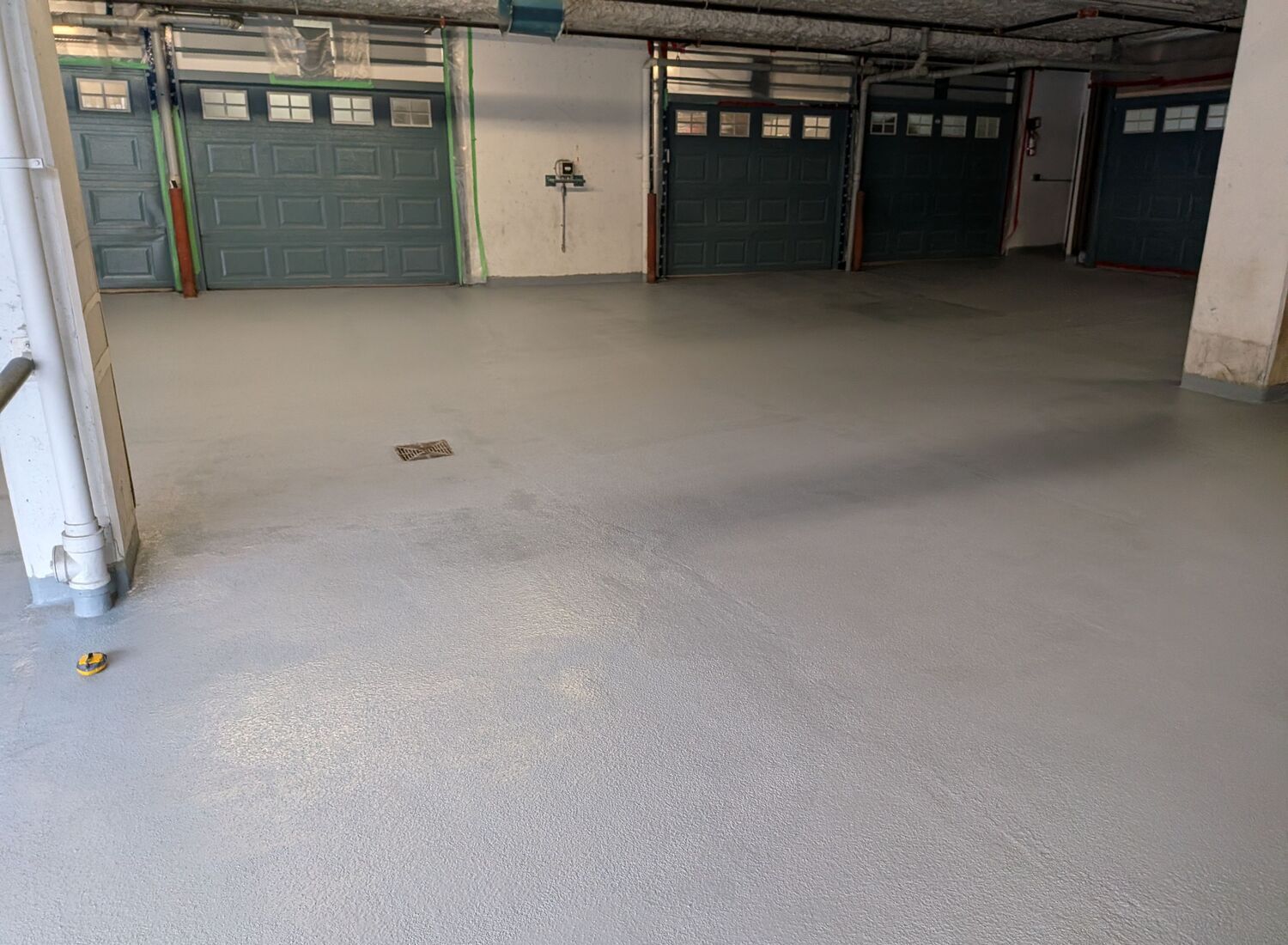

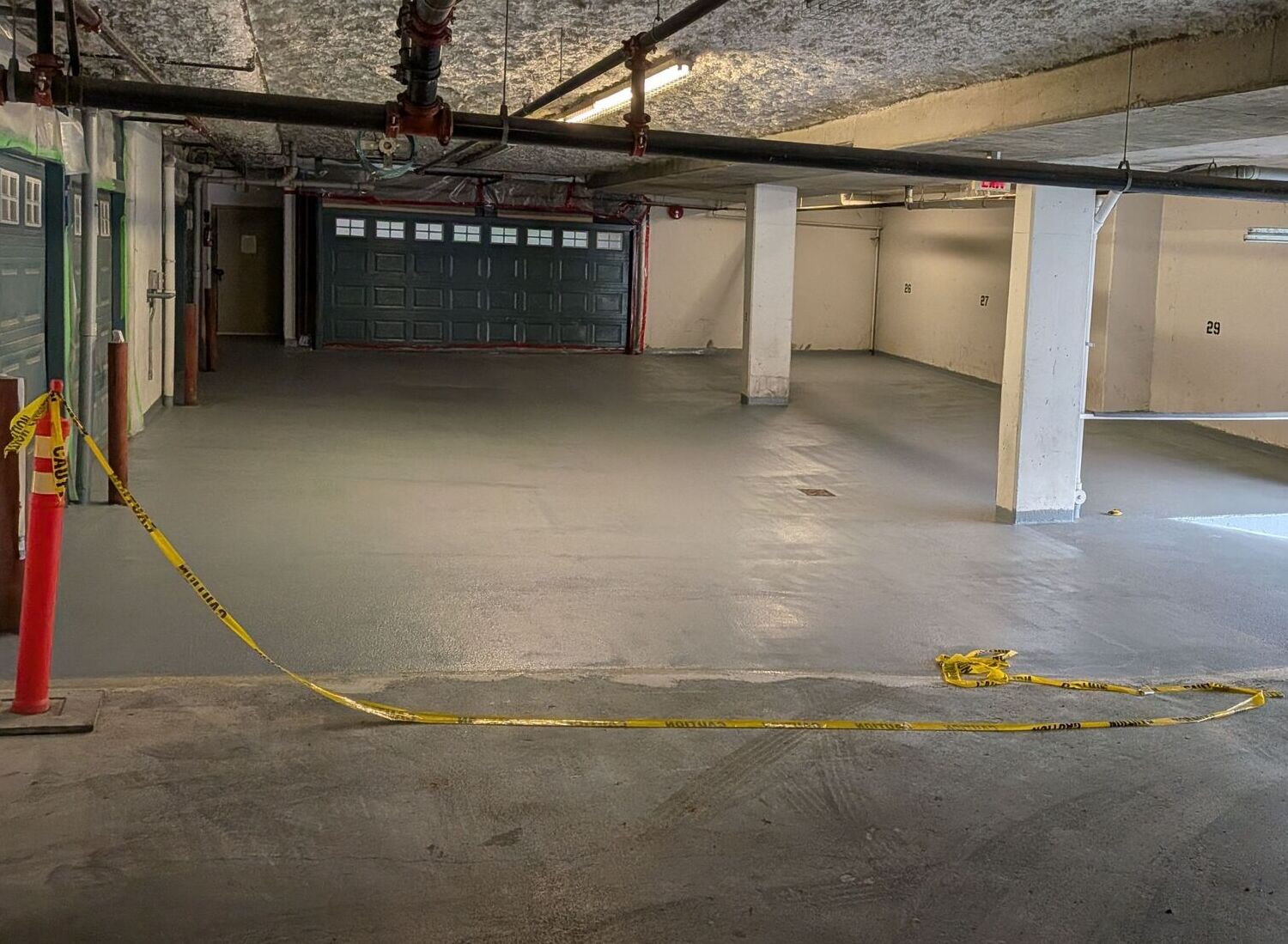

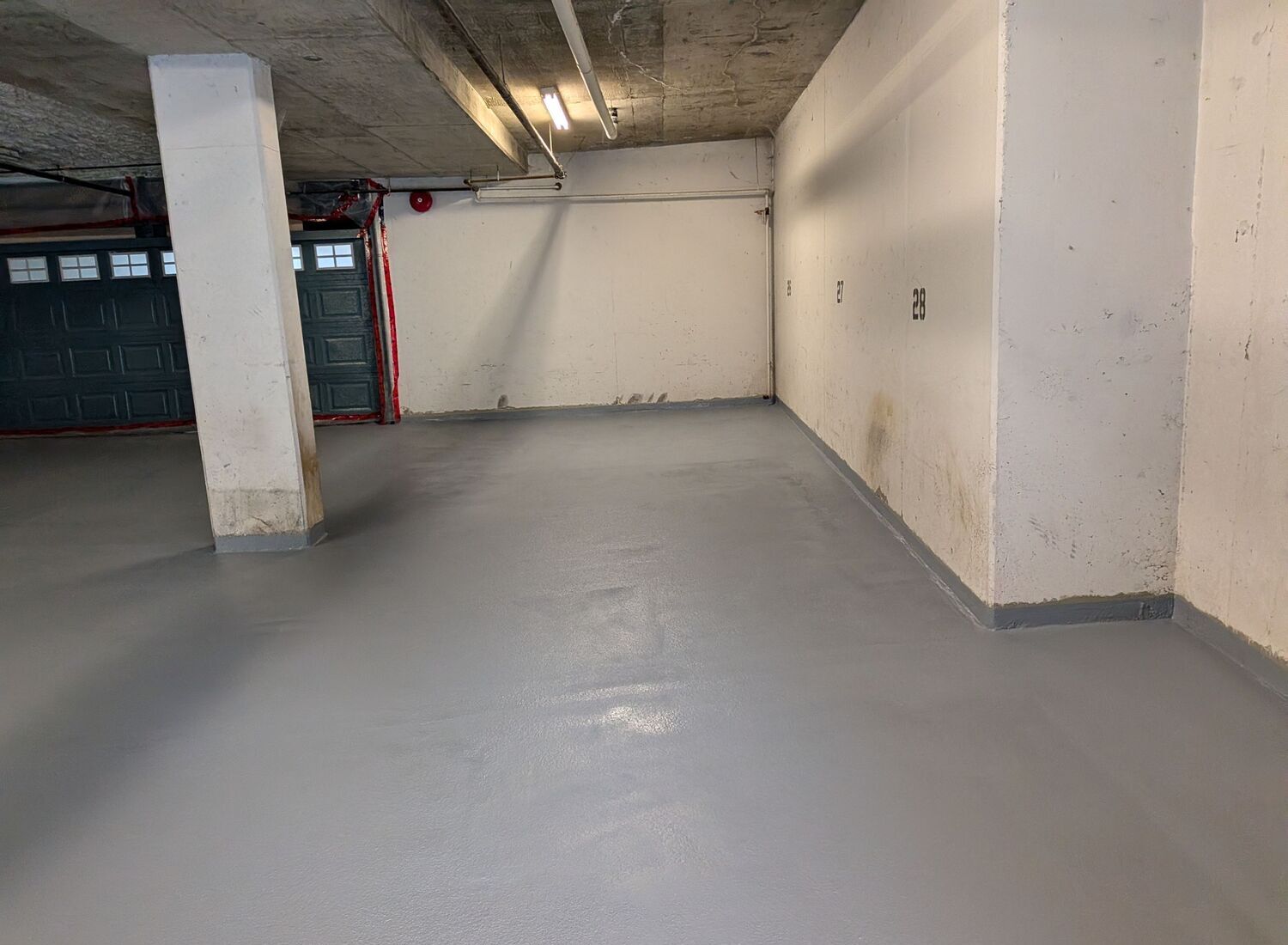

- Application of high-performance traffic coating systems for long-term durability
Each stage of the process was carefully executed and documented to maintain quality control and ensure consistent results.
Challenges Overcome

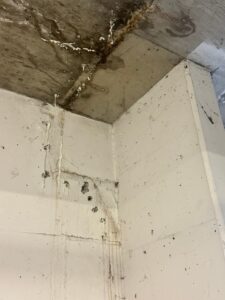

One of the main challenges involved water ingress through larger structural cracks, which prevented immediate application of the coating system.

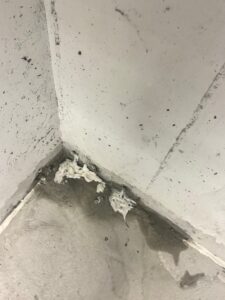

To address this, GC West Construction performed crack injection using a polyurethane resin that expands and hardens upon contact with water. These repairs were completed at multiple locations, including floor-to-wall and wall-to-ceiling interfaces.
By resolving these issues prior to coating, the team ensured the final vehicular traffic coating system would perform effectively and provide long-term protection.
